Product Details

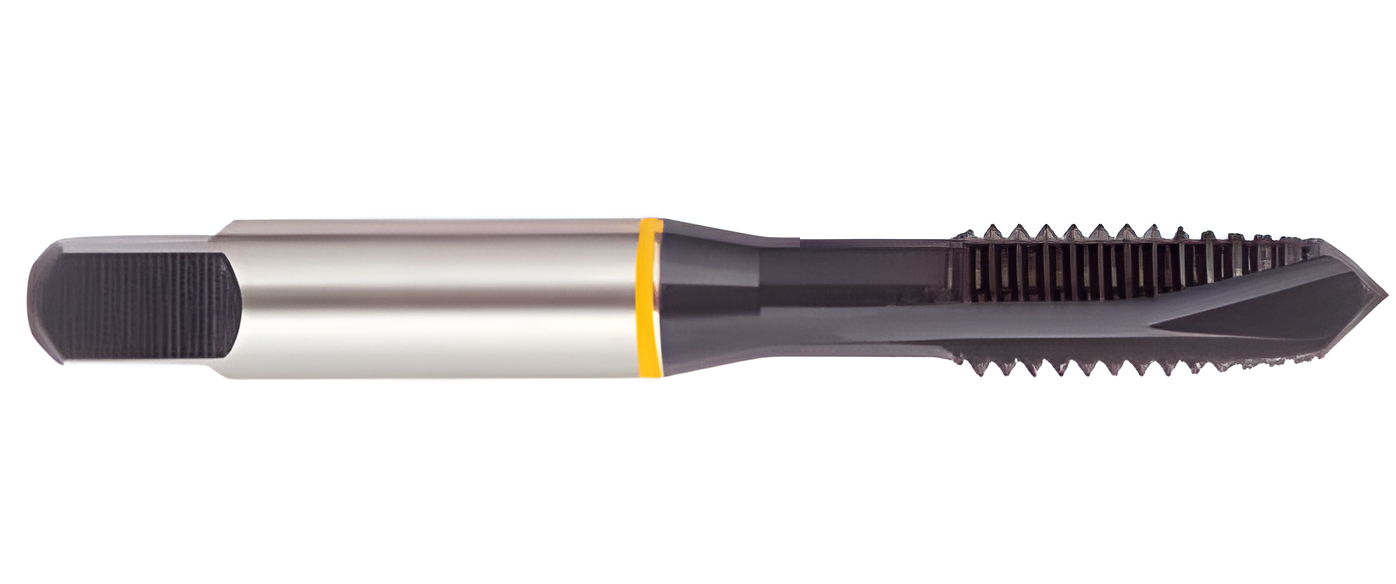

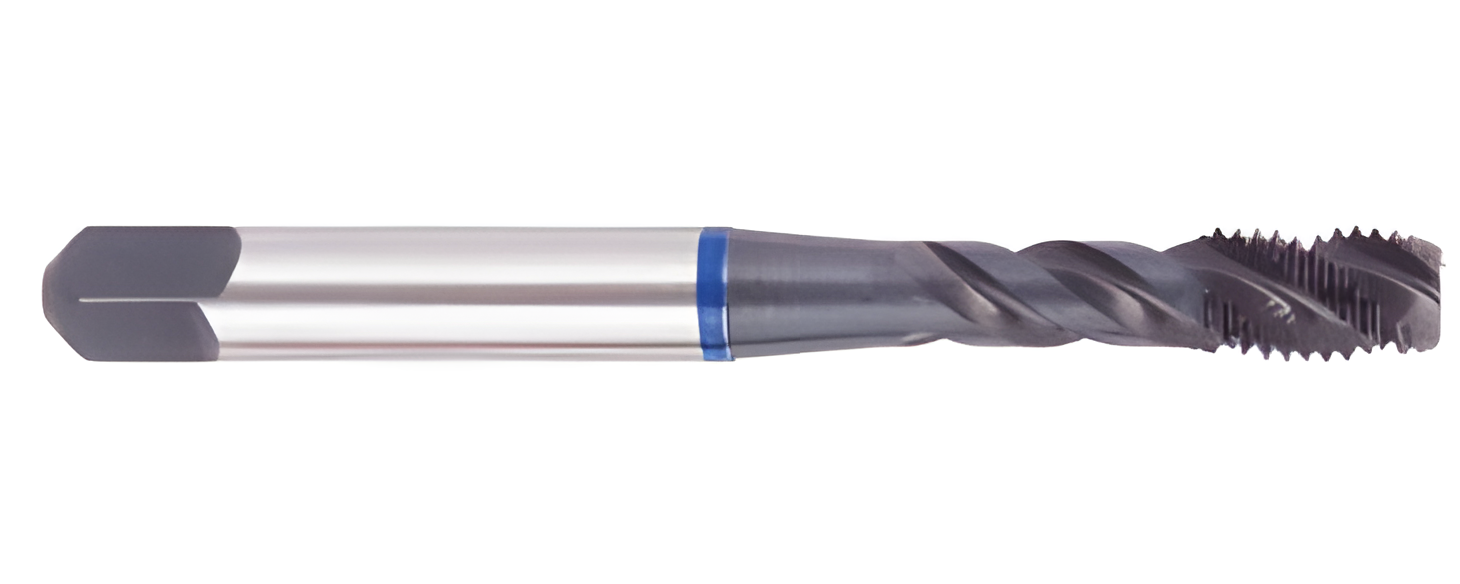

PMX super micro-particle metal and unique computer designed cutting features make this the optimum tap for Titanium alloys up to 35 HRC in through holes. Titanium Carbo Nitride coating insures long life and superior thread finish. With exceptional edge support, this free cutting tap, uses consistent cutting angles on both chamfer and flute face for excellent chip control. Our proprietary PMX micro-particle steel supports the cutting edge in these difficult Titanium Alloy materials. The combination of extreme toughness, wear resistance and closely controlled cutting action provides excellent tool life. TiCN coating is added for extended life and thread finish.

These taps are designed for all Titanium Alloys to 400 BHN

PMX particle metal for wear resistance

Defined helix to lift chip effectively
Precise controlled cutting action
TiCN coating for optimum tool life
Quick service specials available
