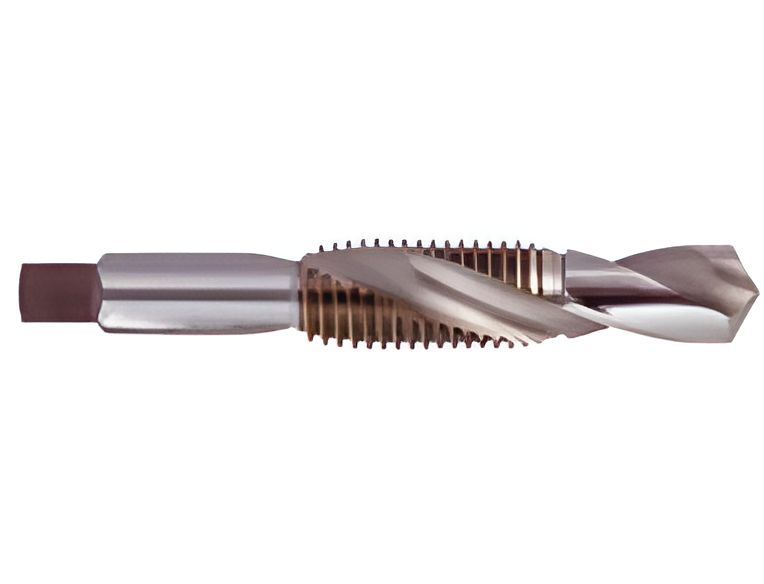

Regal’s combination drill and tap tools, Drill’N’Tap, not only drills a hole but also taps threads in one single pass! This tool is guaranteed to save time on any production drilling job.

The Drill’N’Taps are available in sizes from #4 to ¾” in UNC and UNF as well as metric sizes, from M3 to M 12. Pipe sizes from 1/16” to 1” are also standard.

Benefits of the Drill’N’Tap Combination Tool:

– The helical flute design of the drill and the tap section allows the holes to be drilled and tapped at relatively high speed.
– The drill section is designed to be self-centering for easy starting, with a 118-degree helical point for smaller sizes and a split point for larger sizes.
– These combined drill and tap tools are suitable for a machining center or on multiple-spindle drilling heads with reversing mechanisms.
– These drill tap combos can be used for many materials including steel, aluminum, brass, and malleable iron.
– The Drill’N’Tap can be used on multi-spindle heads with reversing mechanisms for tapping in most materials.
– Since both operations are performed from one shank, expect perfect alignment every time.
– The drill size is designed to produce a standard percent of thread, which eliminates any guesswork.
– This unique combination drill and tap tool is made from high-quality steel. For optimal performance, all tool coatings can be added.
